Understanding Capability Negotiation In MCP

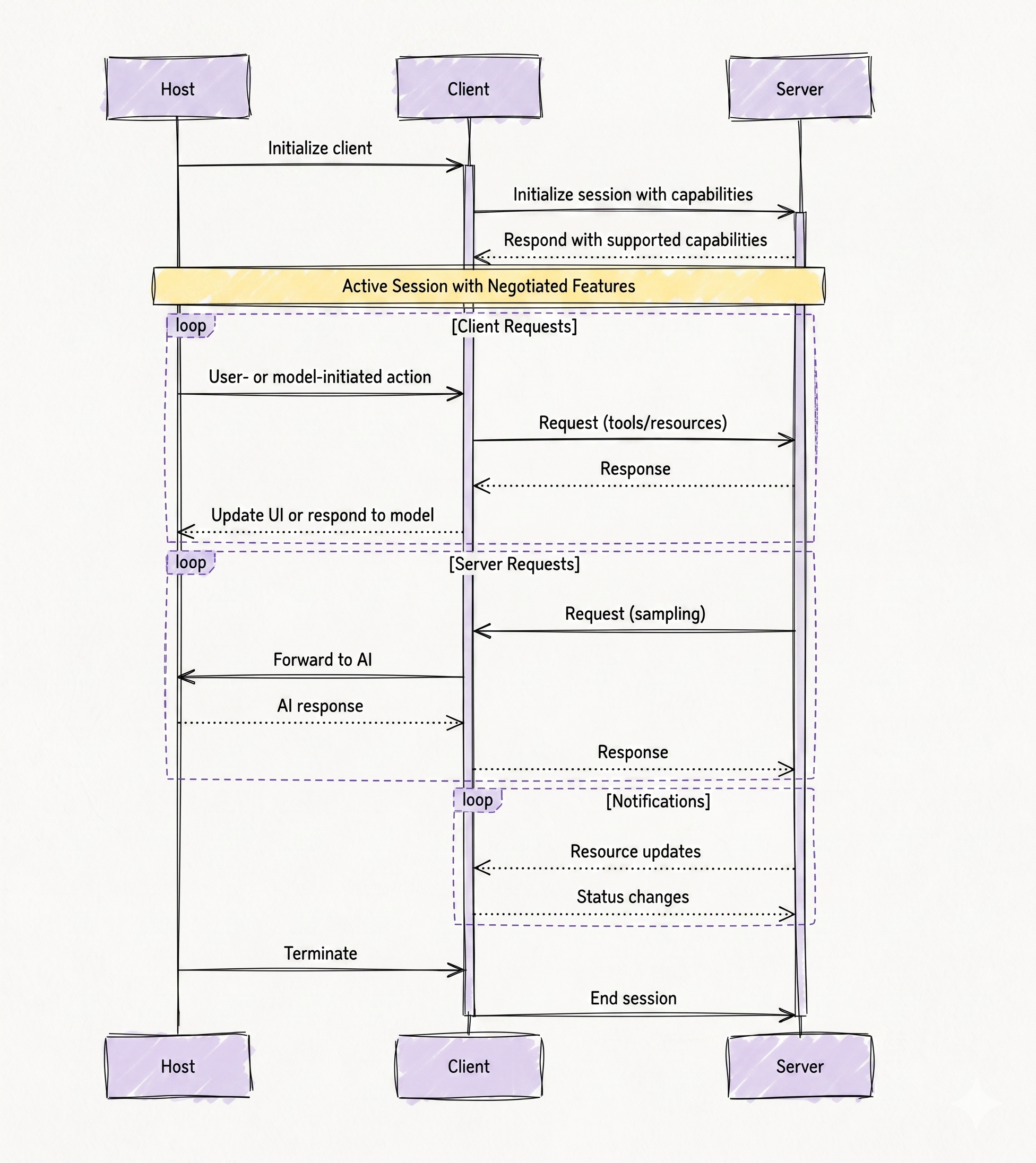

Following diagram represents the lifecycle of communication between three major components in the Model Context Protocol (MCP):

  • Host
  • Client
  • Server

It visually explains how capability negotiation happens during session initialization and how communication continues afterward using the negotiated features. The most important thing to understand is that this diagram is not showing a single request-response operation. Instead, it is showing an entire stateful session lifecycle that begins with initialization, continues with ongoing interactions, and eventually terminates gracefully.

Let us walk through the diagram step by step.

Understanding Capability Negotiation In MCP

The Three Main Components​

Before analyzing the flow, it is important to clearly understand the responsibility of each participant shown in the diagram.

Host​

The Host is the top-level AI application or environment that the user interacts with directly.

Examples include:

  • AI coding assistants
  • Desktop AI applications
  • IDE integrations
  • Autonomous AI agents
  • Workflow orchestration systems

The host is responsible for managing MCP clients and presenting outputs back to users or models. You can think of the host as the “main application layer.”

Client​

The Client acts as the communication bridge between the host and a particular MCP server.

The client:

  • Establishes the session
  • Performs capability negotiation
  • Sends protocol requests
  • Receives responses
  • Maintains session state

One important architectural detail is that each client usually communicates with only one server connection at a time. If a host needs multiple servers, it creates multiple clients.

Server​

The Server exposes capabilities such as:

  • Tools
  • Resources
  • Prompts
  • Notifications
  • Sampling support

The server is essentially the provider of external functionality.

For example:

  • A filesystem server exposes file operations
  • A database server exposes query operations
  • A deployment server exposes infrastructure actions

Phase 1 — Client Initialization​

The diagram begins with this flow:

Host → Client : Initialize client

This means the host creates and initializes an MCP client instance.

At this stage:

  • No server communication has happened yet
  • No capabilities are known yet
  • The client is simply being prepared

This step is internal to the host application. For example, an AI IDE may decide:

“I need a filesystem MCP connection.”

So the host creates a dedicated filesystem client.

Phase 2 — Session Initialization with Capabilities​

The next flow is:

Client → Server : Initialize session with capabilities

This is the most important part of capability negotiation. Here, the client opens a connection to the server and sends its supported capabilities. The client may advertise features such as:

  • Sampling support
  • Notification handling
  • Progress updates
  • Logging support

This step establishes:

  • Protocol version compatibility
  • Session parameters
  • Supported client features

At this moment, the client is essentially saying:

“Here is what I support. Tell me what you support.”

Phase 3 — Server Responds with Supported Capabilities​

The server then replies:

Server → Client : Respond with supported capabilities

This completes the negotiation phase. The server advertises features such as:

  • Tools
  • Resources
  • Prompts
  • Notifications
  • Sampling requests

Now both sides know exactly what operations are valid during the session. This is the core purpose of capability negotiation. Instead of assumptions, both sides establish an explicit agreement.

Active Session with Negotiated Features​

After negotiation completes, the diagram shows this highlighted section:

Active Session with Negotiated Features

This is extremely important. From this point onward:

  • The session becomes stateful
  • Capabilities are remembered
  • Communication uses only negotiated features

The session now behaves like an established communication channel rather than isolated API calls. This enables advanced workflows such as:

  • Notifications
  • Long-running tasks
  • Incremental updates
  • Real-time collaboration
  • Streaming responses

Client Request Loop​

The first major loop in the diagram is labeled:

[Client Requests]

This loop represents normal operations initiated by the host, user, or AI model. The flow begins with:

Host → Client : User- or model-initiated action

This means either:

  • A user requested something
  • Or the AI model decided to perform an action

For example:

  • “Open this file”
  • “Search logs”
  • “Run SQL query”
  • “Deploy service”

The client then sends requests to the server:

Client → Server : Request (tools/resources)

This request is allowed only if the capability was negotiated earlier. For example:

  • Tool calls require tools capability
  • Resource reads require resources capability

The server processes the request and replies:

Server → Client : Response

Finally, the client forwards results back to the host:

Client → Host : Update UI or respond to model

This completes one interaction cycle.

Why This Loop Matters​

This loop demonstrates that capability negotiation is not repeated for every request.

Instead:

  • Negotiation happens once
  • The active session persists
  • Requests reuse the negotiated understanding

This improves performance and reduces overhead. Without this approach, every operation would require repeated capability discovery.

Server Request Loop​

The next section of the diagram is labeled:

[Server Requests]

This is one of the more advanced MCP concepts. Many people assume communication is always client-driven, but MCP supports bidirectional interaction. That means the server can also initiate requests.

Sampling Requests​

Inside this loop, the server sends:

Server → Client : Request (sampling)

This means the server is asking the client to perform AI model inference or sampling. This is extremely important in MCP architecture.

Instead of servers directly invoking AI models themselves, they can delegate model interaction back to the client.

For example:

  • A documentation server may ask the client to summarize content
  • A planning server may ask the AI to generate deployment steps
  • A coding server may request code generation

The client forwards the request to the host or AI system:

Client → Host : Forward to AI

The AI produces a response:

Host → Client : AI response

The client then returns the result to the server:

Client → Server : Response

Why Sampling Requests Are Powerful​

This architecture creates an elegant separation of responsibilities. The server:

  • Provides domain-specific functionality

The client/host:

  • Provides model access

This means servers do not need their own embedded LLM infrastructure. Instead, they can rely on the host’s AI capabilities. This design significantly improves modularity.

Notification Loop​

The third loop is labeled:

[Notifications]

This represents asynchronous communication. Unlike normal request-response operations, notifications are event-driven.

The diagram shows examples such as:

Server → Client : Resource updates

and

Server → Client : Status changes

These notifications allow the server to proactively inform the client about changes. Examples include:

  • A file changed
  • Logs updated
  • Deployment completed
  • Database schema changed
  • Long-running task progressed

This enables real-time reactive systems.

Why Notifications Matter​

Without notifications, the client would need constant polling.

For example:

  • “Has the file changed yet?”
  • “Has deployment completed yet?”
  • “Has the task finished yet?”

Polling is inefficient and wasteful. Notifications solve this problem by allowing the server to push updates immediately. This is one reason MCP uses stateful sessions instead of stateless HTTP-style communication.

Session Termination​

At the bottom of the diagram, the session eventually ends. The flow is:

Host → Client : Terminate

The host decides to close the session. This could happen because:

  • The application shuts down
  • The user disconnects
  • The task completes
  • The server is no longer needed

The client then informs the server:

Client → Server : End session

This allows graceful cleanup. The server may then:

  • Release resources
  • Close subscriptions
  • Save session state
  • Stop background work
